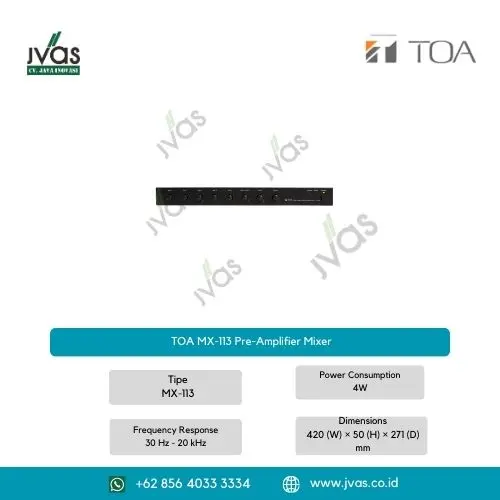

TOA MX-113 Pre-Amplifier Mixer
TOA MX-113 Smart Mixer
Spesifikasi
Power Source: 220 - 240 V AC, 50/60 Hz
Power Consumption: 4W
Input:
MIC 1-5: 600 Ω, -62 dB*, unbalanced, phone jack (voice switch OFF)
600 Ω, -54 dB*, unbalanced, phone jack (voice switch ON)
(option IT-450 balance transformer)
MIC 6: 600 Ω, -62 dB*, unbalanced, phone jack
AUX 1: 10 kΩ, -12 dB*, unbalanced, phone jack/RCA jack
(Microphone 6 and AUX 1 are switch type)
AUX 2, 3: 10 kΩ, -12 dB*, unbalanced, phone jack/RCA jack
AUX 4: 600 Ω, -12 dB*, unbalanced, phone jack
(option IT-450 balance transformer)
Output:
Line output 1: 600 Ω, 0 dB*, balanced, phone jack
Record out : 1 kΩ, 0 dB*, unbalanced, RCA jack
Remote Terminal:
Withstand voltage: DC 30V,
Current: 1A, M3 Screw terminal, 6.4mm
T.H.D: 1 % or less (1 kHz, rated output)
Frequency Response: 30 Hz - 20 kHz
Noise Level: 60 dB
Finish:
Front Panel: Aluminium, Black, Paint
Dimensions: 420 (W) × 50 (H) × 271 (D) mm
Weight: 3.2 kg Accessory: Power Cable (2 pin)
Option:
Rack Mount Bracket: MB-15B,
Balance Transformer: IT-450
The TOA MX-113 is the sound engineer to quality output. This desk mount pre-amplifier mixer is 1U size and comes with 6 microphones inputs, 4 AUX inputs and 2 monaural output to meet to all your audio needs.Boost your audio signal now with the MX-113 and experience like never before - the acoustic difference.
| JENIS PRODUKSI: TKDN |
| BRAND MULTIMEDIA: TOA |
