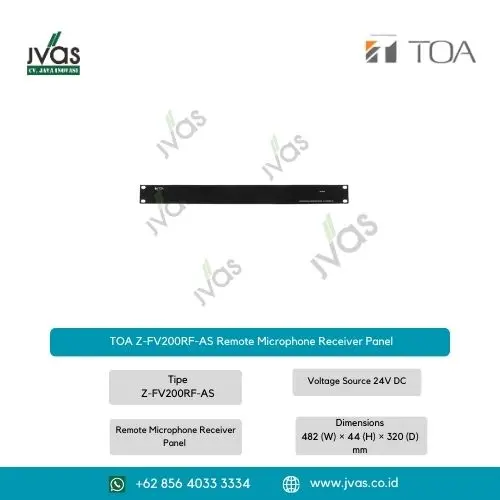

TOA Z-FV200RF-AS Remote Microphone Receiver Panel

TOA Z-FV200RF-AS Remote Microphone Receiver Panel Spesifikasi Power Source: Usable Power Supply Unit: FV-200PS 24 V DC (operating range: 19.5 - 27 V), M3 screw terminal Current Consumption: 230 mA No. of Zone Groups in Speaker Selector: Max. 10 (Z-SS2010, Z-SS-1010R) Priority Control for Remote Microphone: Last-in-1st-out priority / 1st-in-1st-out priority / individual priority / selectable Control Input: All call :1 input,No-voltage make contact input,open voltage 24V DC, short-circuit current : Under 5 mA, removable terminal block (2 pins) Control Output SS Control : 55 outputs, open collector output, removable terminal block (6 pins) Chime: Ascending 4-note tone RF Link Audio Output: 0 dB*, unbalanced, removable terminal block (2 pins) RM Link Usable Remote Microphone: RM-200M Remote microphone extention unit : RM-210 (Max. 4 units) No. of Connectable to Remote Microphone: Max. 4 x RM-200M Max. Cable Distance: Total 800 m S/N Ratio: Over 60 dB Distortion: Under 1% (1 kHz, rated output) LED Indicator: Power (Green), Error (Red) Operating Temperature: 0 ℃ to +40 ℃ Operating Humidity: Under 90% RH (no condensation) Finish: Front Panel : Aluminum, black, alumite Dimensions: 482 (W) × 44 (H) × 320 (D) mm Weight: 2.8 kg Accessory: Removable terminal plug (2 pins) x 2, removable terminal plug (3 pins) x 1, removable terminal plug (6 pins) x 10, Instruction Manual x 1
