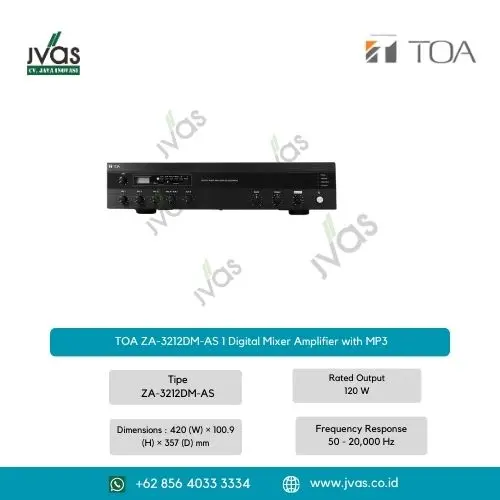

TOA ZA-3212DM-AS 1 Digital Mixer Amplifier with MP3
ZA-3212DM-AS 1 is a high performance yet cost-effective mixer power amplifier equipped with MP3 and Bluetooth function. Ideal for broadcasting, paging, or background music in schools, offices, shops, houses of worship and large ballrooms.

Power Source100 - 240 V AC, 50/60HzRated Output120 WPower Consumption44 W (AC operation at 1/8 maximum output without clip)Frequency Response50 - 20,000 HzInputMIC 1: 1 mV (-60 dB*), 600 Ω, balanced, phone jack, selectable to RJ45
MIC 2-3: 1 mV (-60 dB*), 600 Ω, balanced, phone jack
MIC 4: 1 mV (-60 dB*) 600 Ω, balanced, phone jack, selectable to AUX 1
AUX 1: 100 mV (-20 dB*), 10 kΩ, unbalanced, RCA pin jack, selectable to MIC 4
AUX 2: 100 mV (-20 dB*), 10 kΩ, unbalanced, RCA pin jack
MP3: LED Display, Support USB, SD/MMC card (up to 32GB), Bluetooth, Radio FM, RecordOutputSpeaker out: Speaker Output in screw type terminal
Direct line (selectable): 83 Ω (100 V) or 4 Ω
Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jackPhantom PowerDC +21 V (MIC 1)S/N RatioOver 60 dBTotal Harmonic DistortionUnder 1% at 1 kHz, 1/3 rated powerTone ControlBass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHzMutingMIC 1: Mutes other input signals by 0-30 dB attenuationIndicatorPower, Signal, Peak, ProtectVentilationNatural Air CoolingFinishPanel: ABS resin, black
Case: Steel plate, blackDimensions420 (W) × 100.9 (H) × 357 (D) mm
| JENIS PRODUKSI: TKDN |
| BRAND MULTIMEDIA: TOA |
