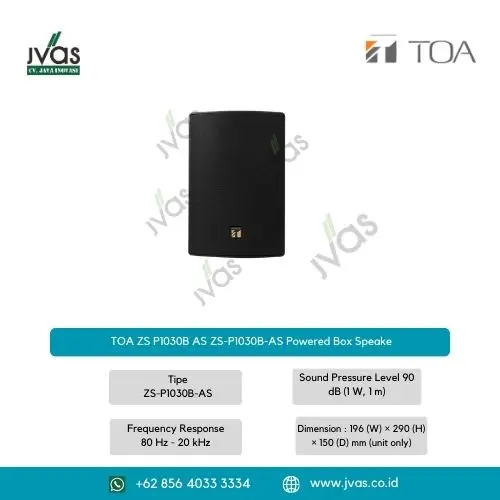

TOA ZS P1030B AS ZS-P1030B-AS Powered Box Speake
The ZS-P1030B-AS is a 2-way bass-reflex type speaker with a built-in 30W digital power amplifier, suitable for use for announcements and music playback. The speaker's splash-proof construction permits it to be installed under the eaves where the speaker is not directly exposed to rain.
Enclosure 2-way bass-reflex type
Power Source 24 V DC, 1.5 A (DC Socket "+" Type A: 5.5 x 2.1mm)
Power Consumption 24 W (1A) at rated output
Input 5 kΩ, unbalanced (RCA plug)
Maximum input: +6 dB V ( 2 Vrms)
Signal Gain +30 dB
Volume Adjustment Volume Control (Factory pre-set to middle position)
Sound Pressure Level 90 dB (1 W, 1 m)
Frequency Response 80 Hz - 20 kHz
Speaker Component 12 cm cone-type + dome-type
Speaker Cord Length: 2m Flying Lead (RCA plug) & DC socket ("+")
Operating Temperature -10 ℃ to +50 ℃
Water Protection IPX4 (can be installed vertically or horizontally.*)
Finish Enclosure: ABS resin, black (RAL9011 GRAPHITE BLACK), paint
Net: Surface treated steel plate, black (RAL9011 GRAPHITE BLACK), powder coating
Bracket: Surface treated steel plate, black equivalent to RAL9011 GRAPHITE BLACK,
powder coating
Dimension 196 (W) × 290 (H) × 150 (D) mm (unit only)
Accessory Bracket…1, Bracket mounting screw…2, Bracket mounting washer…2
Option AC/DC Adapter: Z-AD2430-AS
Applicable bracket: SP-410
Applicable stand: ST-16A
